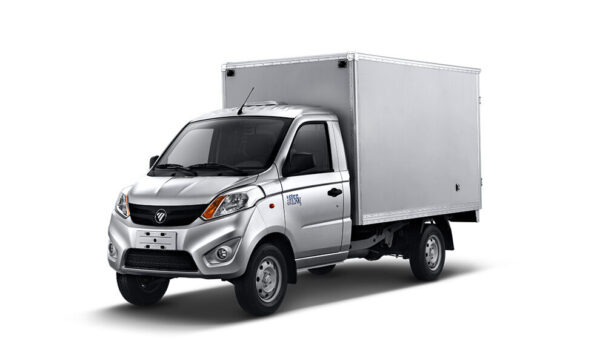

FOTON Gratour T3 Single Cabin Cargo

Highlights

FOTON Gratour T3 Single Cabin Cargo

Brand: Foton PT Gratour
Platform: Gratour T3
Wheel base(mm): 3070
Cabin: Single row/Double row
Load capacity(Kg): 2000

Product Content

SPECIFICATIONS FOTON GRATOUR T3 1.2L / 1.5L
MODELGRATOUR T3 1.2LGRATOUR T3 1.5L
Badger BarrelGRATOUR-SX12/DPH.TLGRATOUR-SX13/DPH.TL
Frame HoodGRATOUR-SX12/DPH.TMGRATOUR-SX13/DPH.TM
Sealed ContainerGRATOUR-SX12/DPH.TKGRATOUR-SX13/DPH.TK
EngineG03 1.2L-4W12M1DAM 15R
Engine type4 stroke , 4 cylinders in line , Water cooled.
Working volume (cm³)12061498
Maximum power (kw/rpm)63 / 600082 / 6000
Maximum torque(n.m)112/4000-4400142 / 4500
Emission levelEuro IV
Fuel typeUnleaded Gasoline
Fuel Consumption7L7.3L
Self-esteem(kg)Badger Barrel10901085
Frame Hood12101220
Sealed Container12701250
Allowable Load(kg)Badger Barrel995990
Frame Hood890850
Sealed Container830820
Total Weight(kg)Badger Barrel22152205
Frame Hood22302200
Sealed Container22302200
Bag Size(mm)Badger Barrel4400x1670x1900
Frame Hood4420x1720x23504440x1720x2350
Sealed Container4400x1670x2380
Wheelbase(mm)2650
Dimensions of the container (mm)Badger Barrel2290x1570x360
Frame Hood2290x1570x1330/1550
Sealed Container2290x1540x1570
Front axle suspensionIndependent, cylinder spring, hydraulic shock absorber, stabilizer bar
Rear suspension systemDependent, semi-elliptic leaf springs, hydraulic dampers
Wheel recipe4x2RICE
Gear5 Forward 1 Reverse
Tire175R14LT
Glass door Mechanical / Manual Rotation
Air conditioningStandard Two-Way
SunroofHave
radioFM / With USB Port
Number of seats02 People
Drive systemElectric Power Assist
Fuel tank (liter)50L
Front brakeDisc Brakes
Rear brakeDrum Brakes
Leather chairHave

It is the Foton mini truck Gratour T3, with manual box and a minimum fuel consumption.

Foton Gratour T3 is mini-truck with one cab, manual driving which helps low cost on fuel, additionally, you can install any type of box goods. It is very convenient to use in town or city placing safety and reducing accident and traffic. It stands out as known as, efficiency, low cost, safety, flexible and affordable.

  • It’s very useful mini-truck to help delivery in town/city more road safety and look neatly for a beautiful road city.
  • It’s very smart choice choosing Foton Gratour T3 deliver your goods/products efficiency.

High Effecncy Power

  • Optimized intake system: Modular design of intake pipe,with engineering plastics substituting the conventional metal,effectively reducing the pipe wall resistance, enhancing theintake efficiency and increasing the engine power.
  • Volkswagen racing car-level DOHC technique, high speed and fast acceleration; 16-valve technique allowing instant power, high torque and excellent acceleration characteristics.

Engines Independently Developed By Foton

  • Intelligent and optimize MPI technique allowing precise oil injection; variable intake PDA, reducing the fuel consumption. Compared to like products, PT engine combustion efficiency increasing by 8% and overall fuel consumption reducing by 6%
  • Excellent air filter performance prolonging the engine life; 55L tank allowing longer driving mileage; bearing type auxiliary water tank and double speed electronic fan enabling better air removal Effect.

Performance

Freight vehicle expert

  • Professional freight vehicle, new design.
  • True short-head mini-pickup truck.
  • Strong chassis: Integratedly formed rectangular tube longeron, reinforced tube type rear axle, integrated primary and auxiliary 5-leaf spring rear suspension, and etc

Load capacity

  • Large cargo compartment: For all the short-head mini-pickup freight vehicles, it has the maximum capacity of 2800*1560*36 mm, capacity of 1.5T ,individual design for cargo compartment and body, high strength,
  • high cargo-carrying capacity, standard cargo compartment configuration, and other practical designs which are more suitable for carrying cargos.
  • Ultra long endurance: 55L high-capacity fuel tank, never rusted, safer, maximum endurance mileage of more than 700KM.



FOTON Gratour T3 Interior
