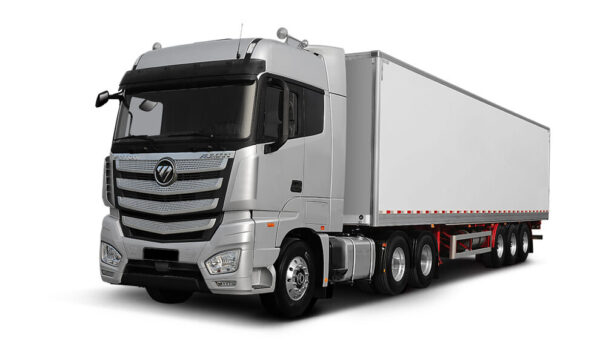

Foton AUMAN EST-A 6X4 Cargo

Highlights

Foton AUMAN EST-A 6X4 Cargo

Platform : 6 series
Engine:410 | 440 | 460
Drive Mode: 4X2/6X4/6X2R
Transmission :ZF manual / automatic transmission
Driving cab :High top | flat top

Product Content

EST-AEST-A
4189SLFKA-B2ZA02
EST-A
4269SNFKB-B4ZA01
EST-A
4269SNFKB-A4ZA02
Cab typeHigh roof extended cabHigh roof extended cabHigh roof extended cab
Drive system4×26x2R6×4
Vehicle dimensions(mm)6085x2490x38007135x2490x39507135x2490x3950
Wheelbase(mm)36003300+13503300+1350
Minimum groud clearance(mm)162230230
Curb weight(kg)804090009000
GCW(kg)450006500055000
Fuel & Engine
Engine modelISG12E5-440ISG12E5-440ISG12E5-430
Fuel typeDieselDieselDiesel
Torque/power2200Nm/331Kw(440HP)2193Nm/331Kw(440HP)2000Nm/316Kw(430HP)
Emission standardEuro VEuro VEuro III
Gearbox typeZF12TX2420TD(AMT)ZF12TX2420TD(AMT)ZF12TX2420TD (AMT)
Chassis
Tire specification315/60 R22.5295/80 R22.5295/80 R22.5
Front suspensionFew leaf springFew leaf springParallel few leaf spring + stable bar +
telescopic shock absorbe
Rear suspensionAir suspensionAir suspensionAir suspension
Rear axle13T485 Single reduction axle13T485 Single reduction axle13T469 Single reduction axle
Final drive ratio2.8462.8463.083
 Rear axle option2.846(ABS)3.083(ABS)3.364(ABS)/4.111(ABS)/3.7(ABS)

Foton AUMAN EST A is the Automatic Version Energy Super Truck (EST). Powered by a Cummins ISG 11.8 litre straight-six turbodiesel producing 424 hp at 1,900 rpm.

Total Comfort Enhancements
Simplified-yet-modern exterior, advanced safety system, fuel efficient & comfortable.

COMFORT MOBILE HOME

Spacious, sedan-inspired interior, double bunk sleeper cabin.
Features 4-point air suspension cabin system.

HUMANIZED CONTROL DESIGN

Optional APU kept the cab at a confortable temperature when engine is turned off.
Powered windows, central locking system and powered sunroof.

QUIET DRIVING ENVIRONMENT

High composite soundproof material and design, achieving less than 60 decibels noise during idling.

Enhanced Safety Features
After a series of improvements and upgrades, vehicles feature both mature technology and stable and reliable performance, making it the choice for logistics operations.

PASSIVE SAFETY

ECE R93 European Safety Standard Compliance
Four-point full air suspension technology cabin, which move backward during impact.

ACTIVE SAFETY

iBrake systems with maximum braking force up to 370HP to reduce braking distance.
Downhill braking improves by 50% compares to conventional exhaust brake system.
Larger rear window, ABS+ASR system, three point adjustable seatbelt, LED Day Running Lights.

Cummins ISG Engine
Cummins ISG series engines are made in the Foton Cummins factory in year 2014. ISG engines are the result of a joint cooperation between American Cummins, Foton Cummins and Foton’s third-party partners. ISG series engine comes in 11-Liter and 12-Liter versions (350 hp to 490 hp) and emissions standards can reach Euro-VI.

–Light-weight modularized design reduces parts and simplifies maintenance
–iBrake braking technology ensures safety
–Innovative cooling and lubricating system reduces energy consumption, prolongs vehicle life.
–High-pressure fuel injection system improves power, lowers fuel consumption
–LBSC improves work efficiency
–Accurate remote diagnostics and advanced warning system
–Leading emission technologies for stricter emission requirements.

AUMAN EST-A is equipped with ABS+EBD brake assist, progressive multi-focus radar system, lane departure warning system and automatic emergency braking system to improve operational safety. Its pneumatic drag coefficient is as low as 0.564, resulting in a 1% reduction in fuel consumption. In addition, the use of exclusive spoiler, front spoiler and aerodynamic side structures can reduce the fuel consumption by a further 0.5%.
