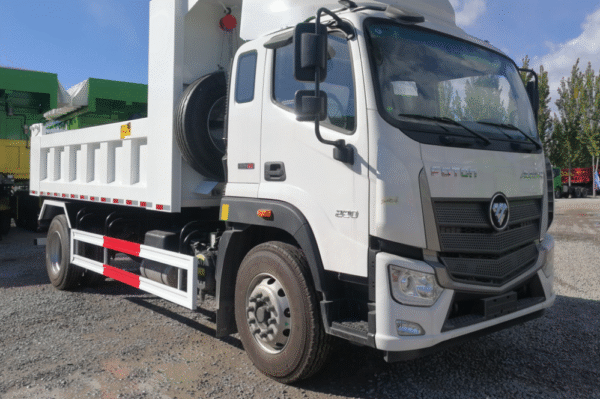

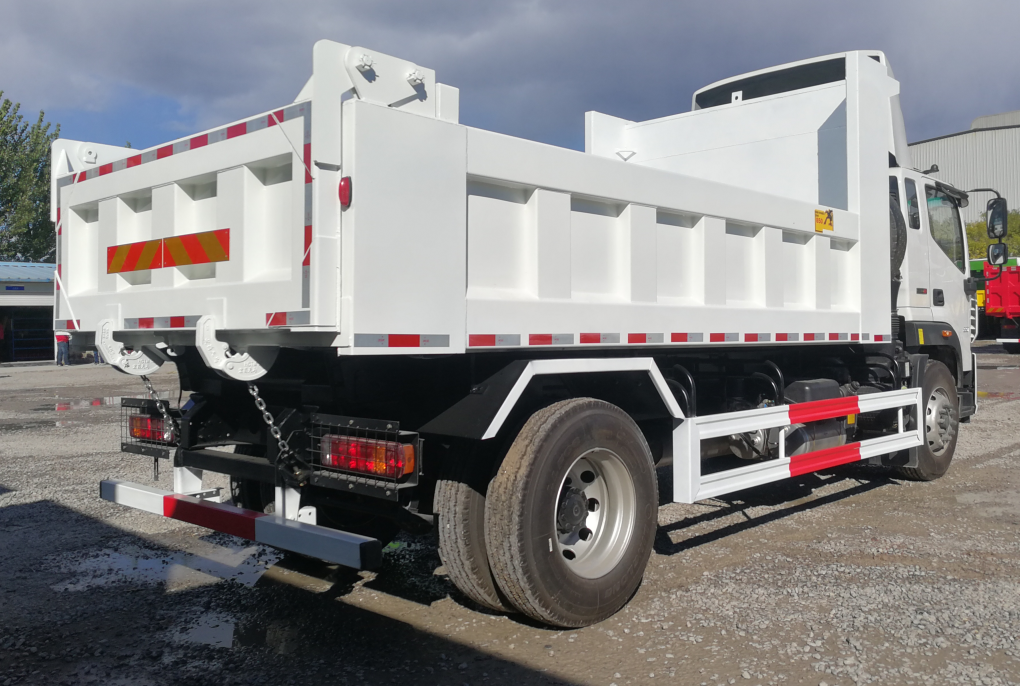

Foton 10T DUMP TRUCK
Highlights
Foton 10T DUMP TRUCK
Driving form：4*2
Vehicle model：EST-M
Engine model：YC6A240-33
Engine manufacturer：Yuchai engine
Fuel type： Diesel
Product Content
| 工厂交货期 | Factory delivery time | 50 Days |
| 报价有效期 | Validity period of quotation | 30 Days |
| 方向机 | Steering wheel | 左舵 LHD |
| 载重量（T） | Load capacity (T) | 10 |
| GVW（T） | GVW（T） | 22 |
| 排放标准 | Emission standard | 欧三 Euro III |
| 驾驶室 | Driver’s cab | 排半 Half of the row |
| 轴距 | Wheelbase | 4800 |
| 驱动形式 | Driving form | 4×2 |
| 车型 | Vehicle model | EST-M |
| 车身宽度(mm) | Vehicle width（mm) | 2200 |
| 公告型号 | Announcement model | BJ1226VMPHG-1 |
| 外形尺寸(mm) | External dimensions(mm) | 8255×2460×3620 |
| 发动机型号 | Engine model | YC6A240-33 |
| 发动机厂家 | Engine manufacturer | 玉柴发动机 Yuchai engine |
| 燃油种类 | Fuel type | 柴油 Diesel |
| 功率 | Power | 177 |
| 马力 | Horsepower | 240 |
| 变速箱型号 | Transmission model | 8JS105TA |
| 变速箱厂家 | Transmission manufacturer | 法士特 Fast |
| 前桥 | Front axle | 5.5T |
| 后桥 | Rear axle | 10T |
| 后桥速比 | Rear axle speed ratio | 4.875 |
| 制动控制 系统 |
Brake control system |
无ABS without ABS |
| 轮胎 | Tire | 无内胎轮胎(英制) 11R22.5 Tubeless tire (British standard) 11R22.5 |
| 油箱容积 | Fuel tank capacity | 200L |
| 基础配置 | Basic configuration | 无安全气囊/无取力器/前后鼓式 基本速比/液压翻转/无导流罩/巡航+135A.h蓄电池/无货箱/手动空调/无内胎轮胎(英制) 11R22.5/手动门窗及后视镜（匹配2450mm内宽货箱）/无行驶记录仪/无稳定杆/MP3/无ABS/动力转向/针织减震座椅（弹簧）/ No airbags/No power take-off/front and rear drum basic speed ratio/hydraulic flip/no fairing/Cruise +135A.h battery/No cargo box/Manual air conditioning/No inner tube tires (British standard) 11R22.5/ Manual doors and Windows and rearview mirrors (matching a 2450mm wide cargo box)/No driving recorder/No stabilizer bar /MP3/ no ABS/ Power steering/Knitted shock-absorbing seats (springs) / |
| 空调 | Air-conditioning | 手动空调 Manual air conditioner |
| 轮胎数量 | Number of tires | 后双胎6+1 Rear twin 6+1 |
| 选装项目 （可选装项另外加钱） |
Optional projects | ABS/ 法兰取力器/ 导流罩 ABS/ Flange power take-off/deflector |
| 货箱配置参数 | Container configuration parameters | 货箱尺寸：5300×2400×1000mm，矩形货箱，锰板，底6边4，国产前顶举升； Cargo box size: 5300×2400×1000mm, rectangular cargo box, manganese plate, 6 at the bottom and 4 on the sides, domestic front top lift. |
