| Specification | FOTON TM5 |
|||||
| Model | Gasoline | Diesel | ||||
| Single Cab | Crew Cab | Single Cab | Super Cab | |||
|
Dimensions |
Overall dimensions (mm) | 5005× 1725× 1925 | 5175× 1725× 1935 | 4550× 1725× 1945 | 5005× 1725× 1925 | 5055× 1725× 1945 |
| Cargo dimensions
(Internal) (mm) |
3300× 1710× 360 | 2700× 1710× 360 | 2820× 1610× 360 | 3300× 1710× 360 | 3100× 1710× 360 | |
| 3300× 1710× 1700 | 2700× 1710× 1700 | 2820× 1610× 1700 | 3300× 1710× 1700 | 3100× 1710× 1700 | ||
| Wheelbase (mm) | 2850 | 2850 | 2400 | 2850 | 2850 | |
| Weights | GVW (kg) | 3460 | 3490 | 2690 | 3404 | 3404 |
| Curb Weight (kg) | 1530 | 1670 | 1560 | 1730 | 1740 | |
|
Engine |
Engine model | DAM15L | DAM15L | 4A2- 88C53 | 4A2- 88C53 | 4A2- 88C53 |
| Displacement (mL) | 1498 | 1498 | 2156 | 2156 | 2156 | |
| Power
(kW/ rpm) |
82/ 6000 | 82/ 6000 | 65/ 3200 | 65/ 3200 | 65/ 3200 | |
| Torque
(N ·m/ rpm) |
142/ 4500 | 142/ 4500 | 240/ 2000 | 240/ 2000 | 240/ 2000 | |
| Transmission | Type | 5MT | 5MT | 5MT | 5MT | 5MT |
| Tires | Quantity | 6+1 | 6+1 | 6+1 | 6+1 | 6+1 |
| Model | 185R14LT | 185R14LT | 185R14LT | 185R14LT | 185R14LT | |
| Suspension | Front | Leaf spring | Leaf spring | |||
| Rear | Leaf spring | Leaf spring | ||||
| Brakes | Front disc, Rear drum | Front disc, Rear drum | ||||
| Power steering | Hydraulic power | Hydraulic power | ||||
|
Equipments |
ABS | ○ | ○ | ○ | ● | ● |
| Power window | ○ | ○ | ○ | ○ | ○ | |
| Fog lamp & DRL | ○ | ○ | ○ | ○ | ○ | |
| Air conditioner | ○ | ○ | ○ | ○ | ○ | |
| Leather seats | ○ | ○ | ○ | ○ | ○ | |

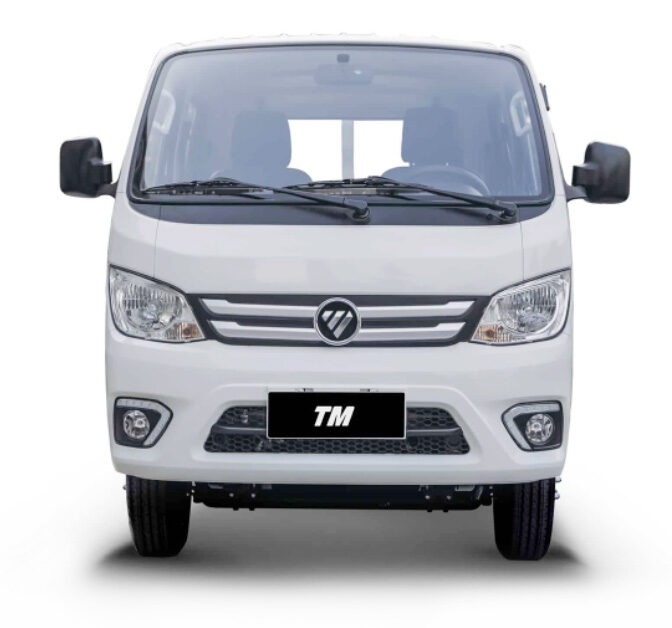

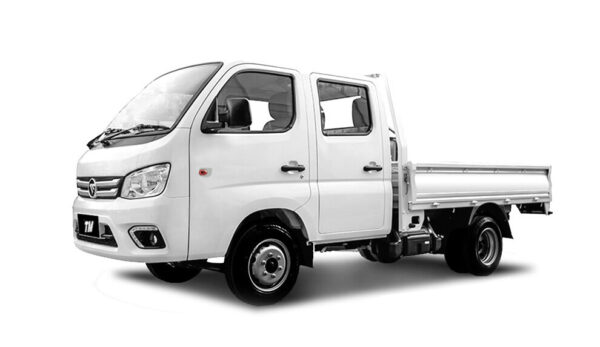

The new FOTON TM5 Double Cabin is designed and equipped to obtain greater capacity and better work performance, optimizing your business more efficiently. Now with double rolling it will allow you to significantly reduce the time, costs and improvements in the delivery service. It is designed to provide comfort and security, ideal for extended management days.
More for you, more for your business.
FOTON TM5 Double Cabin will meet the demands you need for your business; performance, efficiency, fuel consumption, which will allow loads of up to 1,800 kg. You can transport a wide variety of products, using its space and load body of 2700 x 1710 x 360 mm (length x width x high).
It has air conditioning, two speakers, radius with USB input and AUX, electrical alzavidrios.
3 -pointed safety belts, remote control opening in all its doors
1.6 L engine, load capacity 1,800 kg, maximum power (HP/rpm) 114/6000, 50 -liter fuel pond, road fuel consumption: 14.9 km/l
