LxWxH：7645x2350x3100
innerheight：2150
Wheelbase：3600
trackfront:1945/1800
overhangfront:1745/2300
seatsNo.：19+1
| Model | electric bus manufacturers in china |
| LxWxH | 7645x2350x3100 |
| innerheight | 2150 |
| wheelbase | 3600 |
| trackfront/ rear | 1945/1800 |
| overhangfront/ rear | 1745/2300 |
| mini.groundclearance | ≥170 |
| approach/ departureangle | 10/10 |
| B.Performancespecification | Referencedata |
| manufacturer’smax.totalmass | 10600 |
| completevehiclecurbmass | 6600 |
| seatsNo. | 19+1 |
| max.speed | ≤90 |
| max.gradeability | ≥30 |
| mini.turningcirclediameter | ≤20 |
| fuelconsumption[ ratedcondition] | ≤18 |
| max.stoppingdistance[ fullload] | ≤90 |
| fueltankcapacity | 100L |
| C.Enginespecification | . |
| enginemodel | YC4E150-20 |
| enginetype | inline4cylindersturbochargedandinter-cooled |
| enginelocation | Rear |
| cylindernumber | 4 |
| enginedisplacement | 4.2L |
| max.power | 110/2600 |
| max.torque | 490/(1400～1700) |
| fueltype | diesel |
| D.Chassis | . |
| clutch | diaphragmspringclutch[ Ф380mm] |
| gearbox | 5speed |
| propellershaft | gimbalwithcrossedrollerbearing |
| frontaxle | fisttypeforgedsteeland”I”beam |
| rearaxle | full-floatingaxleshaftsinglereductionhypoidgear |
| suspensionsystem | Few-leafspringwithanti-rollbar |
| brakingsystem | Frontandreardrumbrake |
| steeringsystem | powersteering |
| tyre&wheel | 7.50R20withoutsparetyre |
| electricsystem | 24Vminusearth |

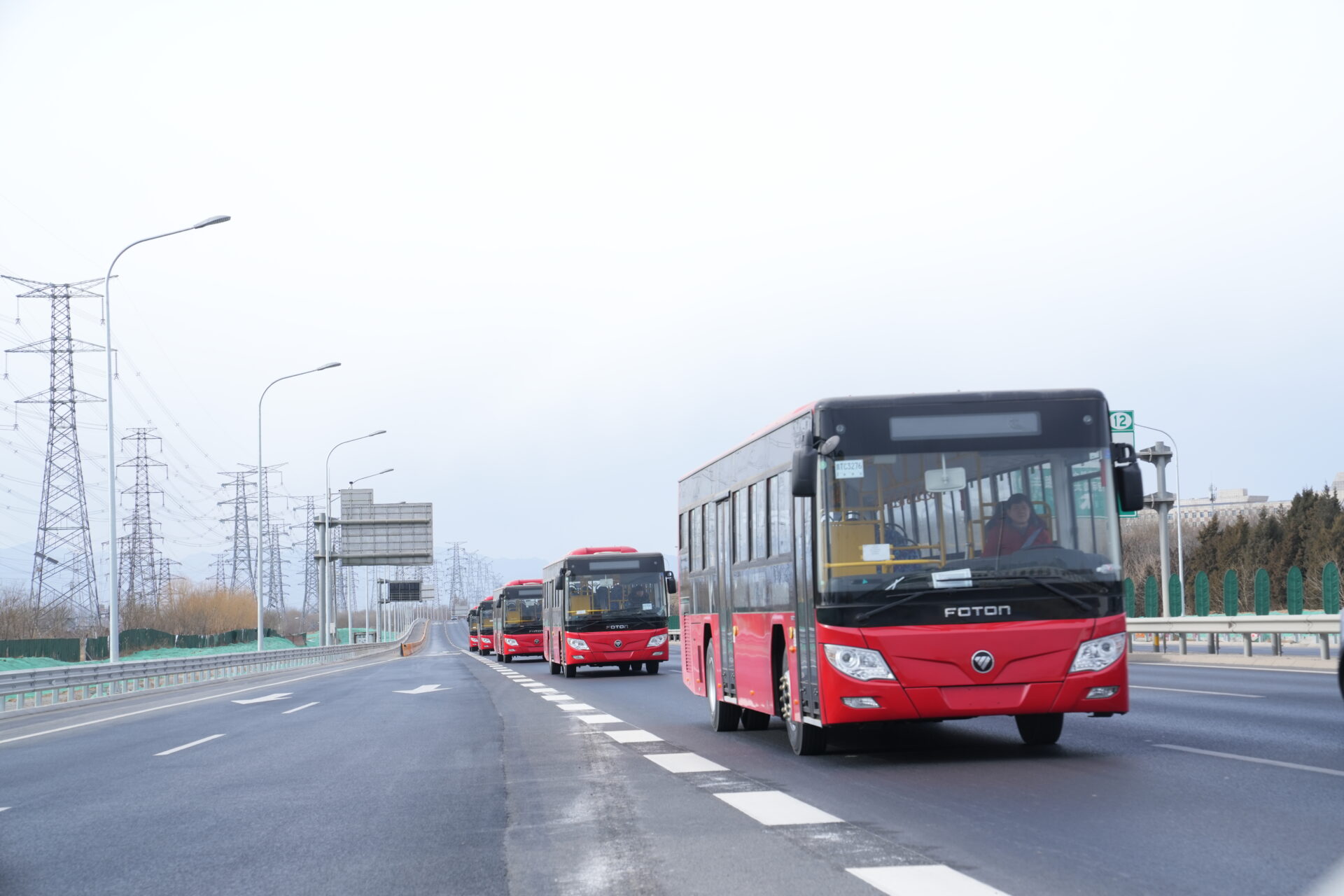

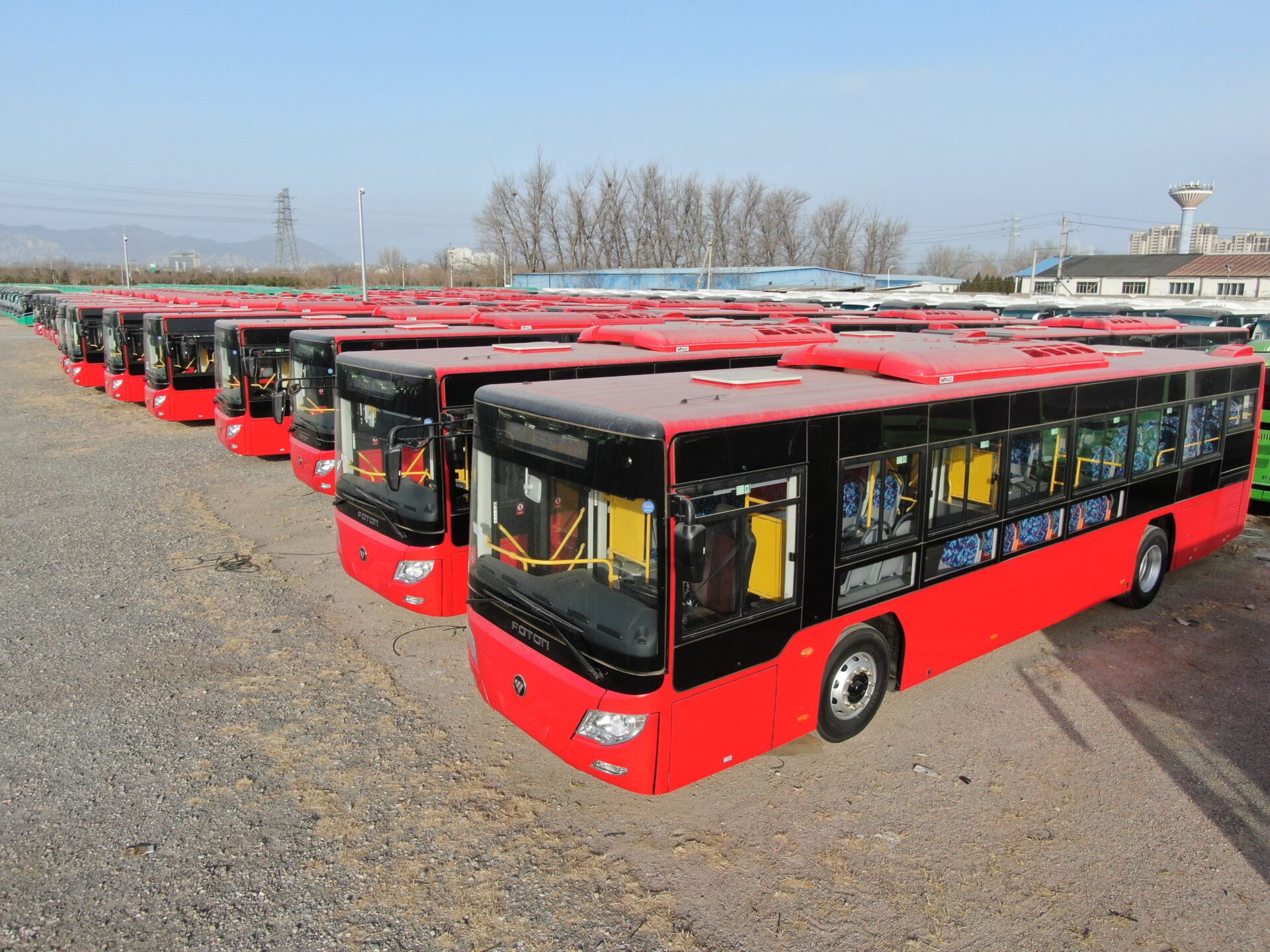

electric bus manufacturers in china-BJ6650 pure electric city bus
electric bus manufacturers in china-Novel modeling
Characterized by fashionable round front headlight, scientific layout of power battery, and retaining the rear windshield.
electric bus manufacturers in china-Sturdy and reliable
4D protection technology, full-truss load-bearing structure, front independent suspension, high-energy liquid-cooled power battery system.
electric bus manufacturers in china-Super Space
Low floor, narrow body, front center door, large capacity, folding door + large opening passenger door.
electric bus manufacturers in china-Powerful range
Various power battery combinations to meet the needs of different operational scenarios.
