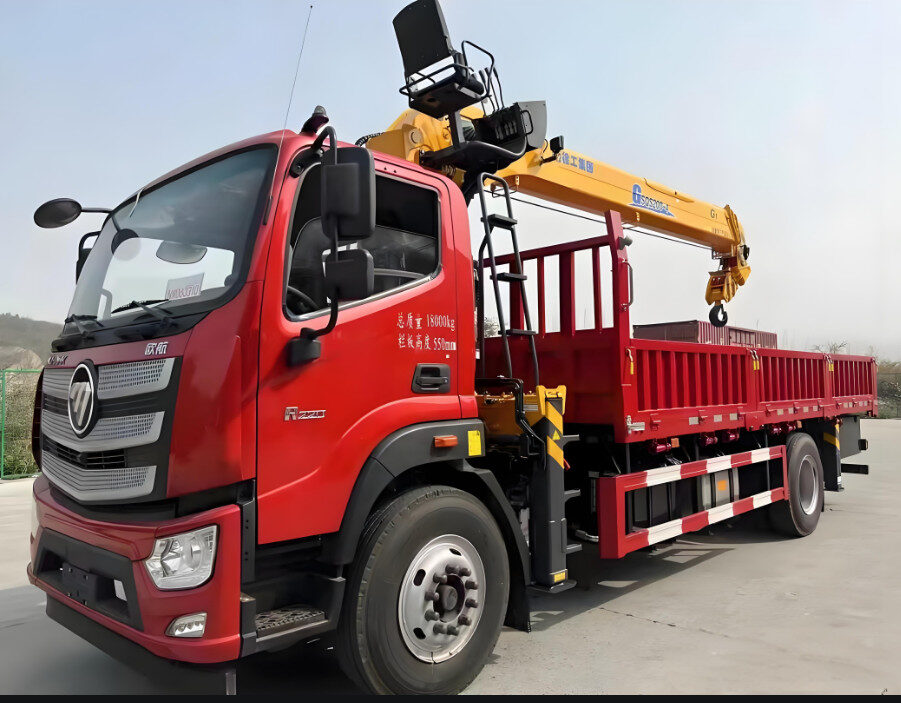

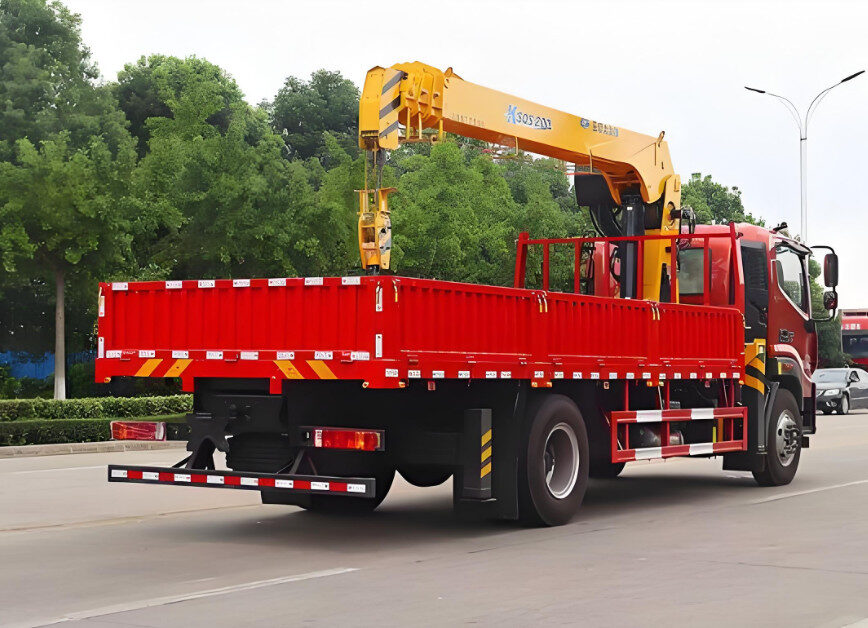

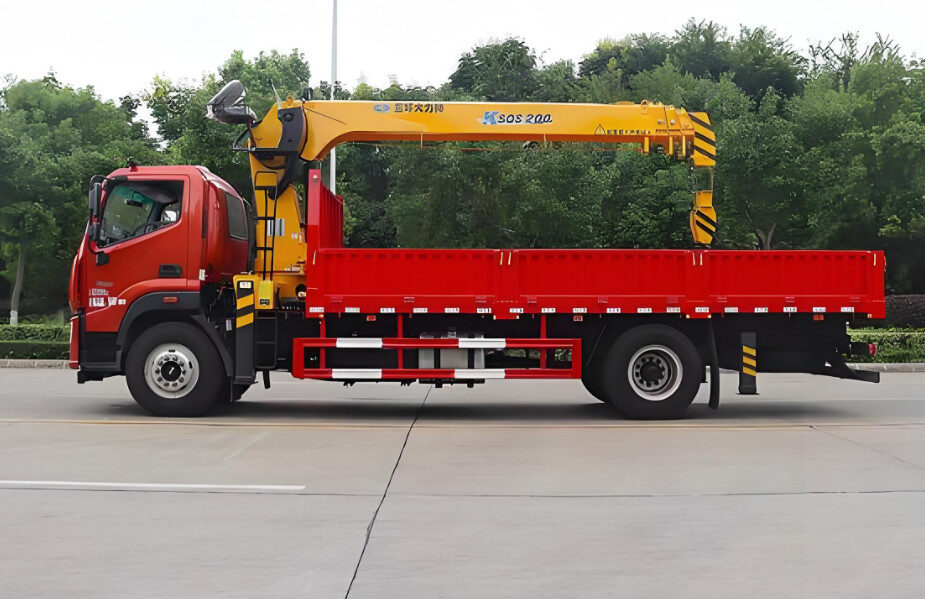

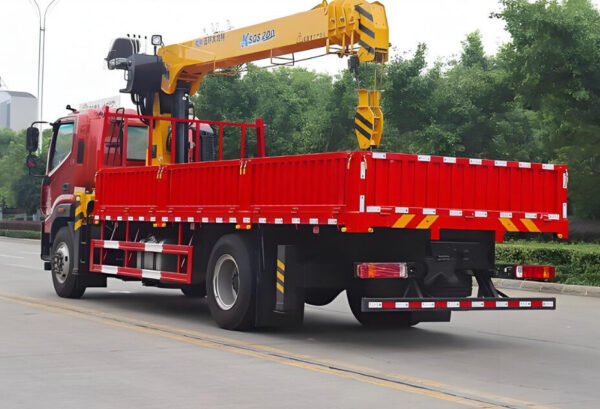

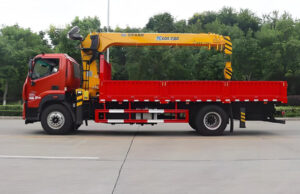

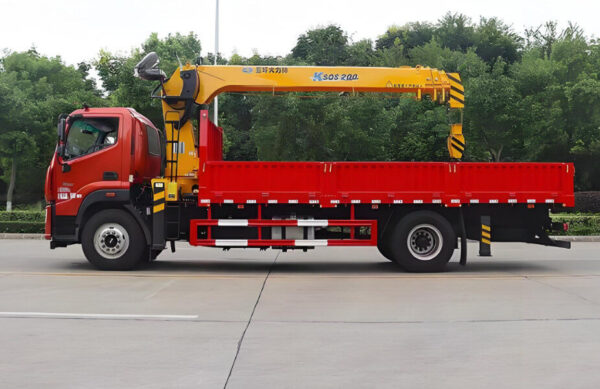

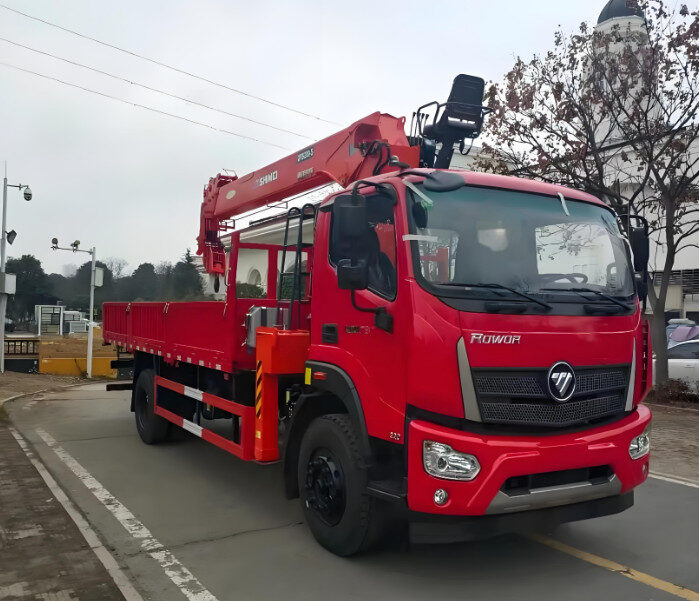

Foton 6×4 straight boom truck-mounted crane, with a maximum lifting capacity of 16 tons
Highlights
Foton 6×4 straight boom truck-mounted crane, with a maximum lifting capacity of 16 tons
Steering wheel：LHD
Emission standard：Euro II
Driver’s cab：Half row
Wheelbase：5900+1350
Driving form：6×4
Product Content
| Steering wheel | LHD |
| GVW（T） | 35 |
| Emission standard | Euro II |
| Driver’s cab | Half row |
| Wheelbase | 5900+1350 |
| Driving form | 6×4 |
| Vehicle model | MA5 truck-mounted crane chassis |
| Vehicle width（mm) | 2200 |
| External dimensions(mm) | 11620×2500×2840 |
| Engine model | YC6A260-33 |
| Engine manufacturer | Yuchai Engine |
| Fuel type | Diesel |
| Power | 192 |
| Horsepower | 260 |
| Transmission model | 8JS118TC-B |
| Transmission manufacturer | FAST |
| Front axle | 6.5T |
| Rear axle | 10T |
| Rear axle speed ratio | 5.571 |
| Brake control system |
ABS |
| tire | L295/80R22.5-18PR-KT |
| Fuel tank capacity | 450L |
| Basic configuration | Manual air conditioning /MP3 manual adjustment, no heated exterior mirrors, manual door and window lifting, no central control lock, mechanical door lock |
| Air-conditioning | Manual air conditioner |
| Number of tires | 10+1 |
| Cargo box size | 8000×2300×600; The maximum lifting capacity of the crane is 16,000 kg. The maximum extended arm length is 19.3 meters. The crane weighs 6,206 kilograms |
