Model |
Chinese Electric Bus Manufacturers-BJ6851 |
| Model | 31+1 |
| Dimension (LxWxH)(mm) | 9300*2450*3050/3150 |
| G.V.W. | 12.2T/13.2T |
| Seat No. | 31+1 |
| Wheelbase(mm) | 4560 |
| Max. Gradeability(%) | ≥20 |
| Max. Speed (km/h) | ≥80 |
| Fuel Tank Capacity(L) | 200(Diesel)/8*80(CNG) |
| Fuel Consumption(L/100km) | ≤15 |
| Engine Model | CUMMINS POWER ISD 230 51 |
| Max Power/Rev. (KW (ps) /rpm) | 169/2300 |
| Front Axle | 4.5T |
| Rear axle | 9T |
| Suspension System | Air suspension system |
| Steering System | Power steering |

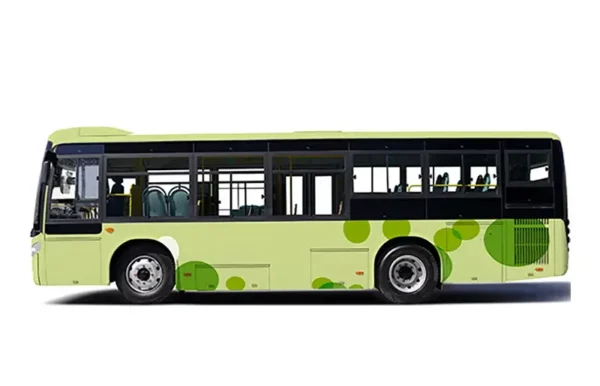

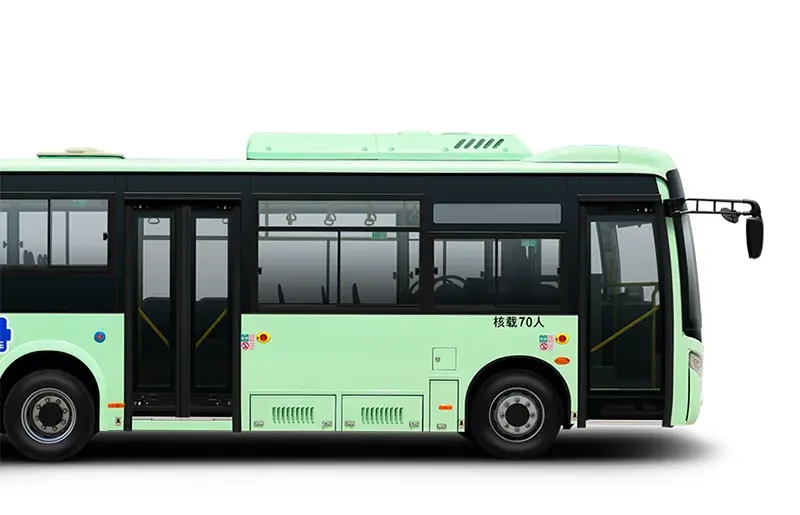

Chinese Electric Bus Manufacturers-BJ6851 Pure Electric City Buses
Pure electric city bus BJ6851 series of chained internationalized city bus adopts the basic styling of square tone and small rounded corner, with compact model and European style, tailored for small and medium-sized cities, adapting to the demands of various roads and passenger flow, as well as the working conditions of feeder routes of large cities and suburban buses, and assisting small and medium-sized cities in realizing the goal of “green and livable” urban construction. “Green Storm
Chinese Electric Bus Manufacturers-Green Storm All-round King
Permanent magnet synchronous drive motor, high output power, strong torque, fast acceleration, adapt to a variety of road traffic environment.
Meet the needs of large city feeder, suburban, small and medium-sized city passenger buses.
Battery, motor and electronic control have been immersion tested, and the protection level reaches IP68.
Chinese Electric Bus Manufacturers-Spiritual Intelligence Driving control from the heart
European-style closed cockpit, six-way adjustable driver’s seat, reasonable layout, comfortable and generous.
The driving area is wide; the interior is simple, generous, environmentally friendly and more comfortable to drive.
Visualized CAN bus instrument, humanized button design, more convenient for driving and scheduling.
Full disc brake, reliable control.
Highly integrated and complete performance integrated controller.
Chinese Electric Bus Manufacturers-Ultra-strong load capacity

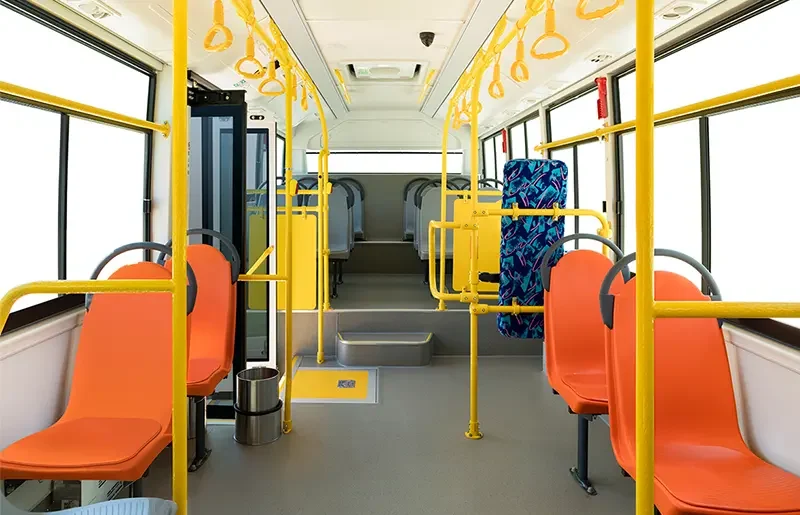

Ultra-long wheelbase, humanized interior space design, less steps, large capacity.
Adopting environmental protection process standard, safe, flame retardant and odorless.
Double-layer soundproof wall technology and high-performance environmentally friendly sealing noise reduction materials to ensure a comfortable and safe ride.
Chinese Electric Bus Manufacturers-Energy saving and high efficiency Value model
The average value of Ekg is less than 0.15Wh/km.kg, which meets the highest subsidy factor of 2020.
Compact power layout, long driving range, and battery life of 8-10 years.
The vehicle is equipped with the e-AIR intelligent circulation system, which is able to maintain constant temperature and humidity of the engine and reduce the energy consumption of the vehicle.
The whole vehicle adopts QStE700TM high-strength steel and full load-bearing technology, with a higher level of lightweighting.
