| Specification | TM3 | |||
| Model | Gasoline | |||
| Single Cab | Crew Cab | |||
|
Dimensions |
Overall dimensions (mm) | 4470× 1590× 1850 | 4670× 1590× 1850 | 4670× 1590× 1850 |
| Cargo dimensions
(Internal)(mm) |
2820× 1560× 360 | 3050× 1560× 360 | 2300× 1560× 360 | |
| 2820× 1560× 1570 | 3050× 1560× 1570 | 2300× 1560× 1570 | ||
| Wheelbase (mm) | 2400 | 2600 | 2600 | |
| Weights | GVW (kg) | 2795 | 2795 | 2795 |
| Curb Weight (kg) | 1210 | 1210 | 1270 | |
|
Engine |
Engine model | DAM15R | DAM15R | DAM15R |
| Displacement (mL) | 1498 | 1498 | 1498 | |
| Power
(kW/rpm) |
82/6000 | 82/6000 | 82/6000 | |
| Torque
(N ·m/rpm) |
142/4500 | 142/4500 | 142/4500 | |
| Transmission | Type | 5MT | 5MT | 5MT |
| Tires | Quantity | 4+1 | 4+1 | 4+1 |
| Model | 175R14LT | 175R14LT | 175R14LT | |
| Suspension | Front | McPherson independent suspension | ||
| Rear | Leaf spring | |||
| Brakes | Front disc, Rear drum | |||
| Power steering | Electric power | |||
|
Equipments |
ABS | ○ | ○ | ○ |
| Power window | ○ | ○ | ○ | |
| Fog lamp & DRL | ○ | ○ | ○ | |
| Air conditioner | ○ | ○ | ○ | |
| Leather seats | ○ | ○ | ○ | |

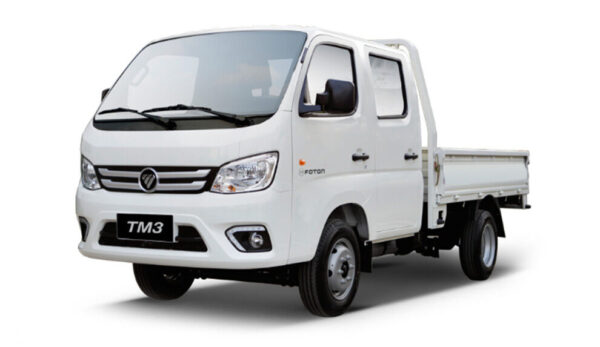

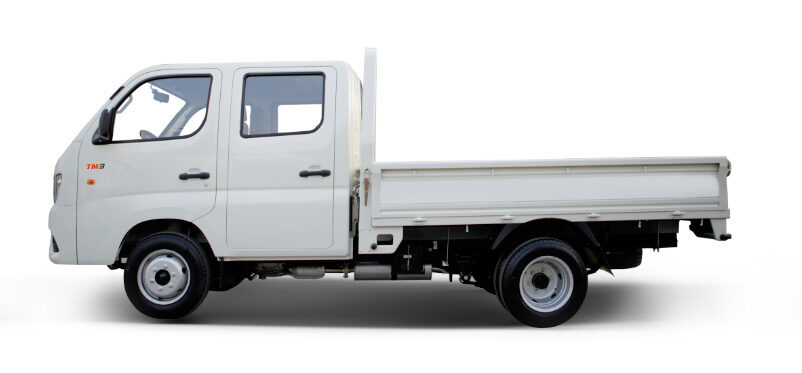

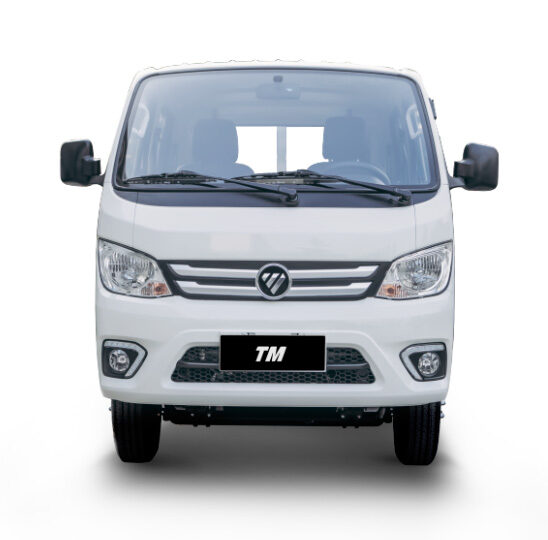

Foton TM3 double cabin is designed and equipped to obtain greater capacity and better work performance, optimizing your business more efficiently. The time, costs and improvements in the delivery service decreases. It is designed to provide comfort and security, ideal for extended management days.
Foton TM3 double cabin will meet the demands you need for your business; performance, efficiency, fuel consumption, which will allow loads of up to 1,500 kg. You can transport a wide variety of products, using its space and load body of 2800 x 1560 x 360 mm (length x width x high).
It has air conditioning, 3 -pointed safety belts, 3 -pointed safety belts in rear seats (central 2 -pointed seat), two speakers, radius with USB input and aux, remote control opening in all its doors, electric shells. Everything you need to work with greater comfort and security.
Comfort
It has air conditioning, two speakers, radius with USB input and AUX, electrical alzavidrios.
Security
3 -pointed safety belts, remote control opening in all its doors
Performance
1.6 L motor, load capacity 1,500 kg, maximum power (HP/rpm) 114/6000, 50 -liter fuel pond, with the new Euro 6 standard.
