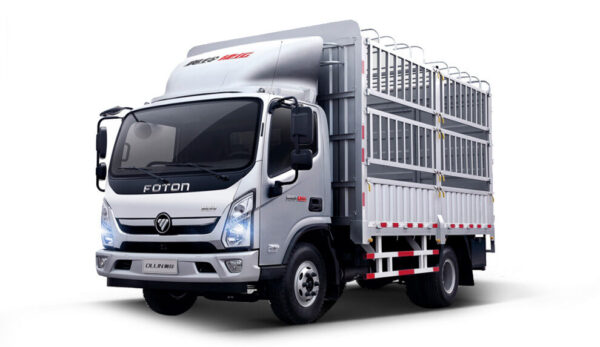

Foton Aumark E Fence Cargo

Highlights

Product Content

Vehicle model AUMARK-T33 AUMARK-T38 AUMARK-T43
Cabin Single row/ W1800/ left rudder Single row/ W1995/ left rudder Single row/ W1800/left rudder
Whole vehicle main dimensions Overall dimensions  (LxWxH) mm 5875×1915×2230 6785×2130×2330 5975×1925×2230
Wheel base(mm) 3360 3800 3360
Weight data Curb weight(kg) 2100 3110 2300
Gross vehicle weight(kg) 4485 8500 5500
Persons in cab 3 3 3
Whole vehicle main performance Max. speed(km/h) 95 95 95
ENGINE Model BJ493ZLQV1 YC4D130-33 4J28TC
Emissions standards EuroⅢ EuroⅢ EuroⅣ
Displacement(L) 2.771 4.214 2.771
Rated Power(kw/rpm) 80 96 81
Max torque (N.m/rpm) 280 380 280
Gearbox Model JC5-28 6T120 6T100
Front axle Type/ Mainreducetion ratio 2.2T 2.5T 2.2T
Rear axle Type/ Mainreducetion ratio 5.0T/6.142 6.0T/5.286 5.0T/5.375
Suspension Front suspension/ Leaf spring number 3+1 9 3+1
Rear suspension/ Leaf spring number 6+7 11+7 6+7
Brake system Service brake Drum pneumatic braking Drum pneumatic braking Drum pneumatic braking
Parking brake Central drum brake Brake gas brake Brake gas brake
Auxiliary brake Engine exhaust brake Engine exhaust brake Engine exhaust brake
Wheels and tyre size 6+1/( 7.00R16) 6+1/( 8.25R16) 6+1( 7.00R16)

Aumark is a medium & high end light-duty truck brand under Foton Motor group, the Chinese largest commercial vehicle supplier. Foton Motor has collection of years of experience in truck building and absorbed the leading technology from Europe and America. Foton Aumark, developed to meet the needs of efficient logistics and transportation for users around the world, has many characteristics such as performance leading, environmentally friendly energy-saving, model-rich and adapting to the global light truck users of a variety of logistics scenes.

Aumark E is designed for meeting the global user’s pursuit of an efficient and worry-free city logistics.

Aumark E :Utility,Economical,Reliable,Safe; On Demand to The High-frequency Urban Logistics Scenes.

Aumark E Providing the Product Value that Deals With the Whole Application Scenes of the Urban Logistics
