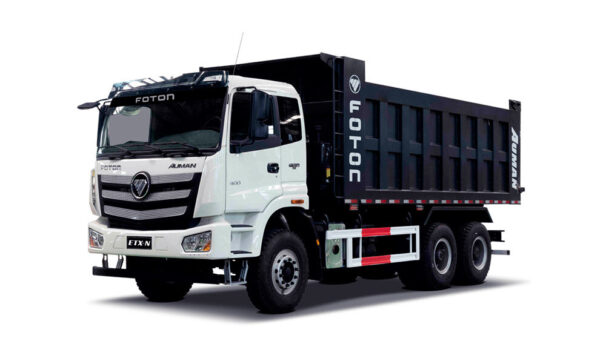

Foton AUMAN ETX-N 6×4 DUMP TRUCK
Highlights
Product Content
| Summary | Truck & Bus Segment | Heavy-duty Truck |
| Cab Type | Sleeper Cab | |
| Body Type | Dump Truck | |
| Body Application | N/A | |
| Seating Capacity | 2 | |
| Engine & Transmission | Engine Model | ISGe4-400 |
| Engine Size (L) | 11.8L | |
| Engine Type | 6-Cylinder turbo charged, 4 stroke in-line, water cooled | |
| Cylinder Count | 6 | |
| Valve Count | 24 | |
| Transmission Type | Manual | |
| No. of Gears | 12 Speed | |
| Drive Type | 6×4 | |
| Performance | Max Power (hp) | 400hp |
| Max Torque (Nm) | 2,100Nm | |
| Top Speed (km/h) | N/A | |
| Fuel & Economy | Fuel Type | Diesel |
| Fuel Capacity (L) | 350L | |
| Emission Standard | Euro 4 | |
| Dimensions | Gross Weight (Kg) | 62,000kg |
| Overall Width (mm) | 3,075mm | |
| Overall Height (mm) | 3,520mm | |
| Overall Length (mm) | 8,749mm | |
| Wheelbase (mm) | 4,100mm | |
| Wheelbase Extension | 1,350 | |
| No. of Wheels | 10 | |
| Front tire size | 12.00R20 | |
| Rear tire size | 12.00R20 | |
| Suspension & Brakes | Front Suspension | Laminated leaf spring with double shock absorbers |
| Rear Suspension | Laminated leaf spring with double shock absorbers | |
| Front Brakes | Air Brakes | |
| Rear Brakes | Air Brakes | |
| ABS | YES | |
| Parking Brakes | YES | |
| Features | Air Conditioning | Yes |
| Adjustable Drivers Seat | Yes | |
| Crusie Control | ||
| Telematics | No | |
| Warranty (Km) | N/A |
TECHNOLOGY AND PERFORMANCE
Equipped with Cummins’ heavy-duty ISG engine, the ETX-N is designed to meet customers’ demands for performance and reliability and to significantly improve customer experience with power and torque, fuel economy, safety, reliability, drivability, and total cost of ownership. The ISG heavy-duty engine are built to set new benchmarks and meet a broad variety of global market requirements and emissions standards.
