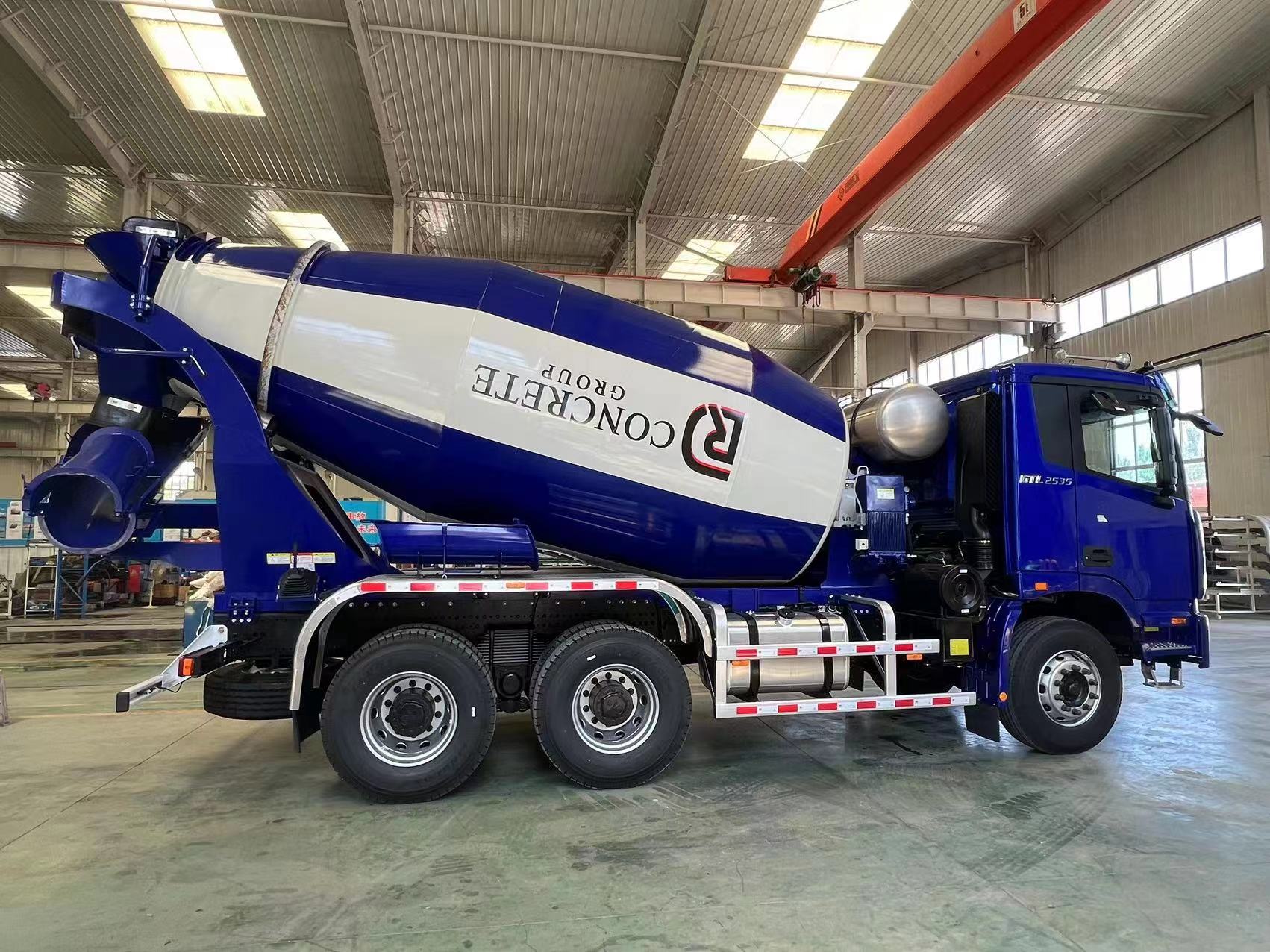

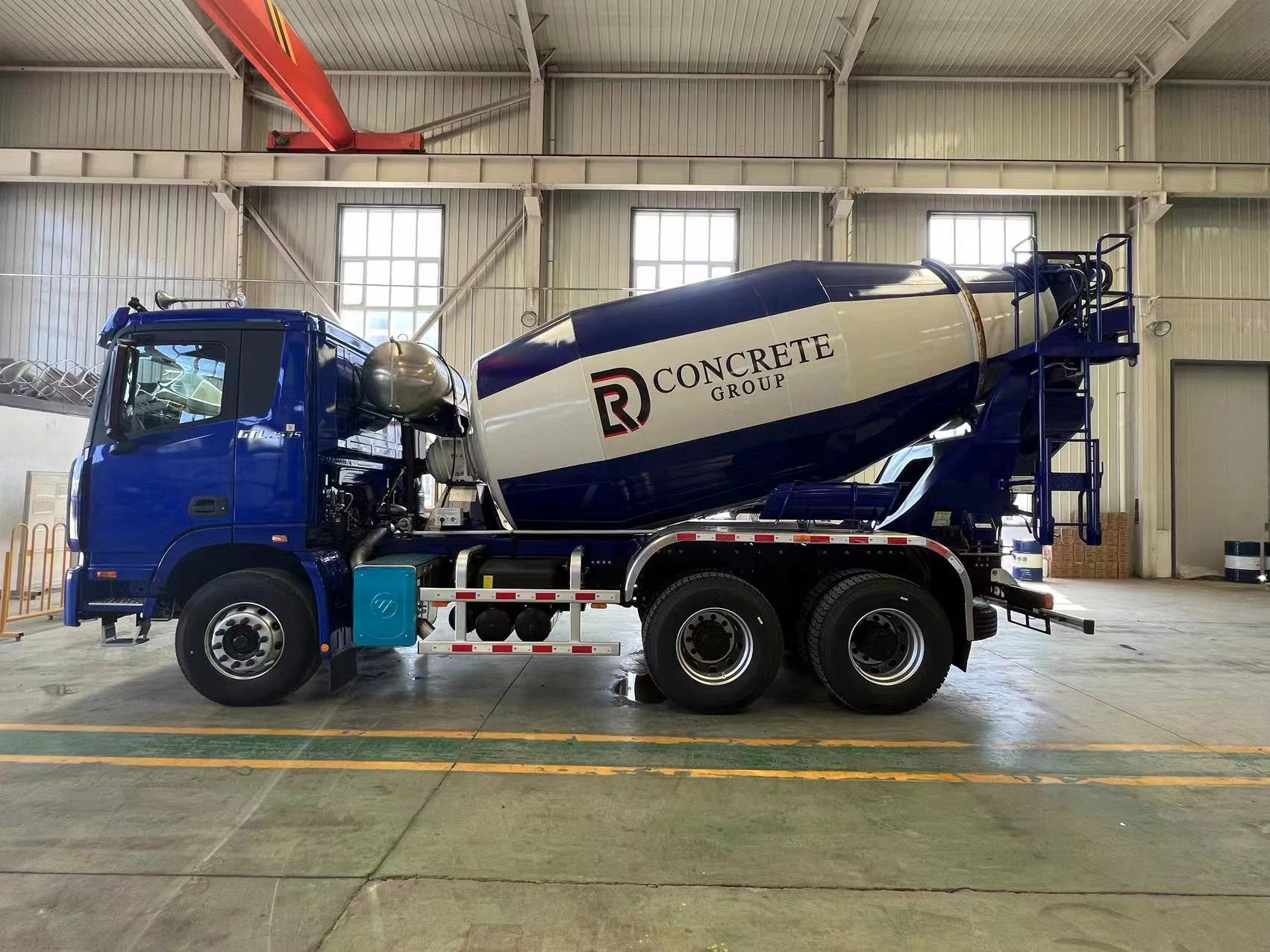

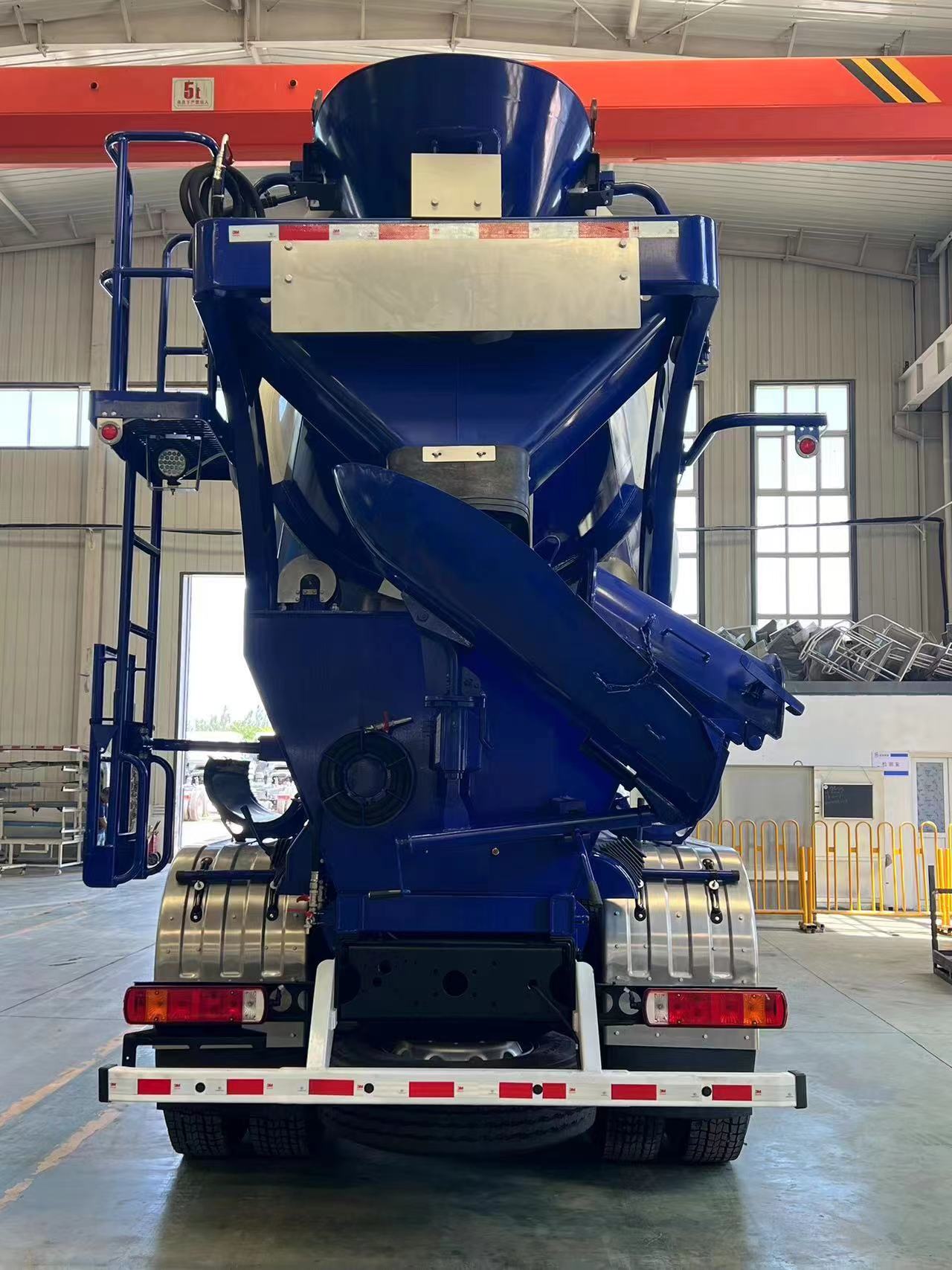

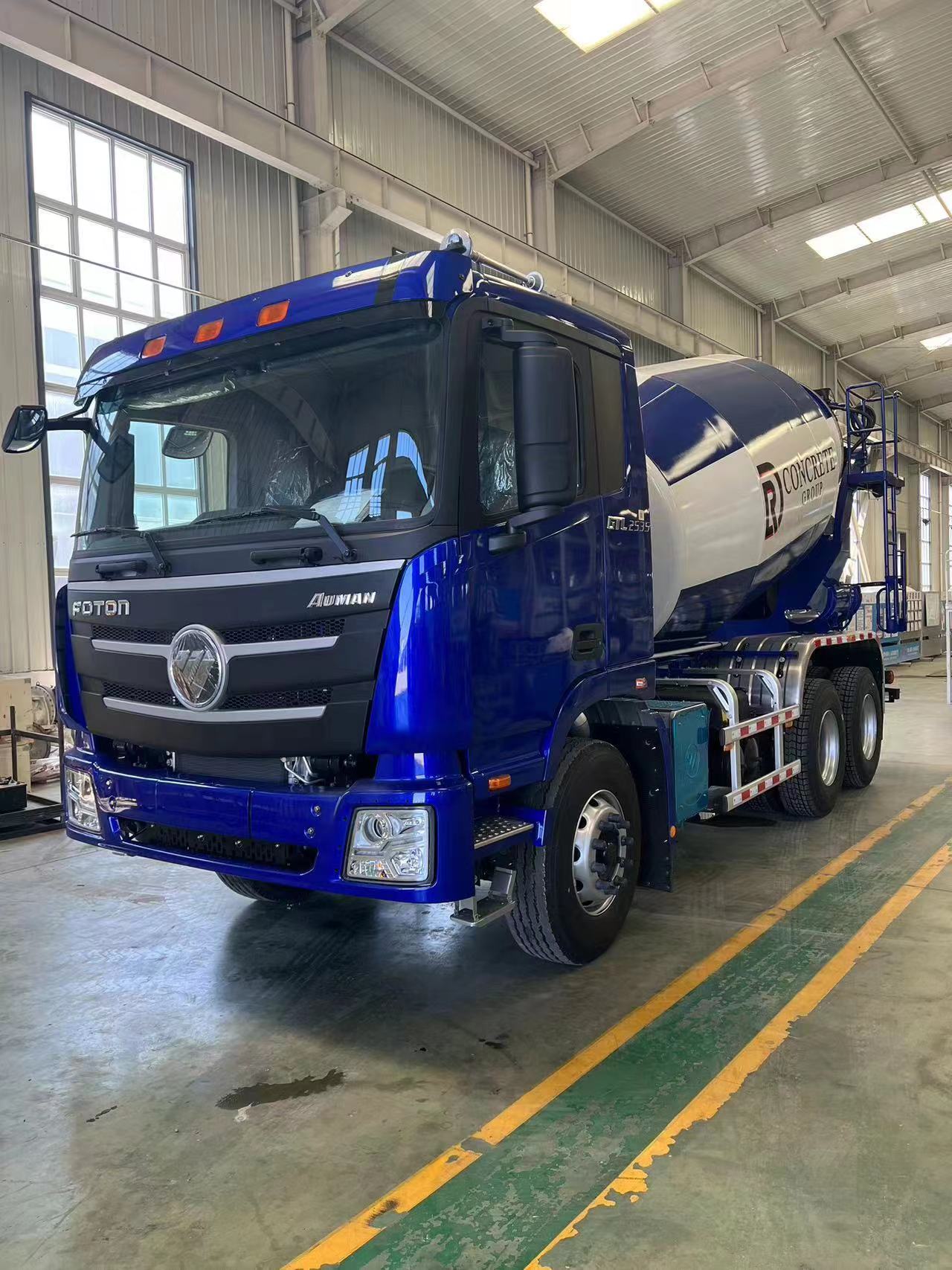

Foton 10-cubic-meter concrete Mixer
Highlights
Foton 10-cubic-meter concrete Mixer
Steering gear: Left rudder
Model: GTL
Load capacity: 10 cubic meters
Drive form: 6×4
Wheelbase: 3575+1350
Product Content
| Function | Mixer |
| Driving type | 6×4 |
| Steering wheel position | left standard |
| Grade | GTL |
| Emission standard | EURO Ⅲ |
| Inner model | BJ5259GJB00-AA |
| Whole vehicle main dimensions | 9935X2495X3900 |
| 8380×2495×3280 | |
| 3575+1350 | |
| Weight data | 38000 |
| 15500 | |
| 9500 | |
| 24000 | |
| Performance | 90 |
| 35% | |
| Cabin | H5-2490 with one bed |
| 2 | |
| Engine | ISGe3-350 |
| 257/350(1900) | |
| 1800/1000-1400 | |
| 10.5 | |
| EURO Ⅲ | |
| Clutch | diaphragm spring |
| φ430 | |
| Gearbox | 9JSD200A |
| 13.76,7.36,5.20,3.77,2.75,1.95,1.38,1.00,0.73 R1:13.76 |
|
| FAST | |
| Brake | Drum brake |
| Engine brake | |
| Suspension | leaf spring/9 |
| leaf spring/12 | |
| Front axle | 7.5T |
| Drum brake | |
| Rear axle | 16T*2 |
| 4.8（ABS) | |
| Drum brake | |
| Tyre | 315/65R22.5 |
| 10+1 | |
| Frame | 865X225/320X90X(8+7) |
| Steering gear | AM90L-S |
| Fuel tank | 350L Aluminum |
| Electrical system | 12V*2 |
| 165Ah | |
| Mixer drum | 10 cubic metre |
