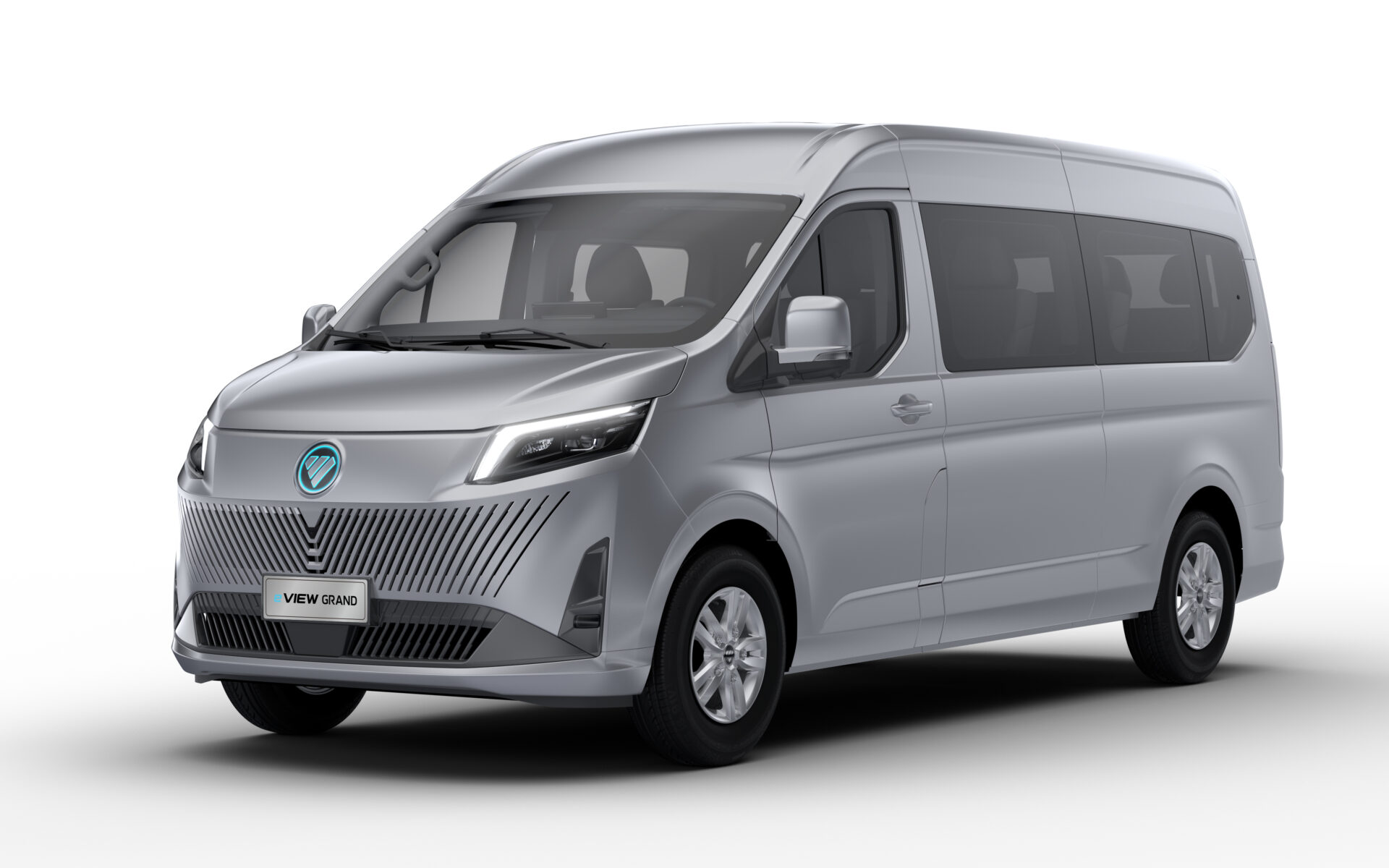

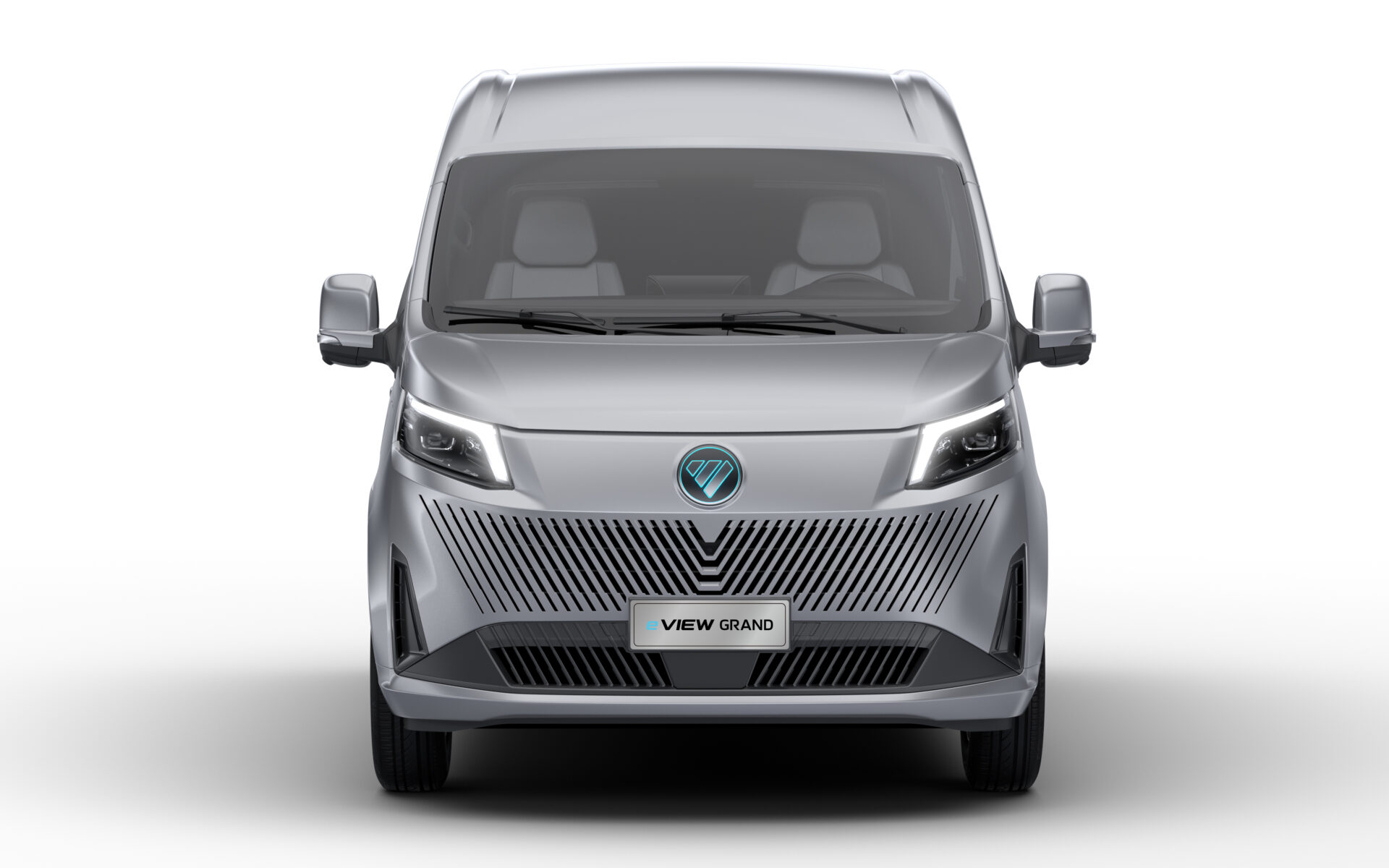

12-seat FOTON diesel scenic large V new cab
Highlights
Product Content
| 公告型号 Announcement Model |
BJ6552B1DAA-EA |
| 驱动 Drive |
4×2 |
| 轴距 Wheelbase |
3510 |
| 整车外形尺寸 Overall vehicle dimensions |
5490×1980×2195 |
| GVW | 3200KG |
| 宽度 width |
1980 |
| 顶高 Top height |
中顶 Middle top |
| 方向机 Steering gear |
左舵 LHD |

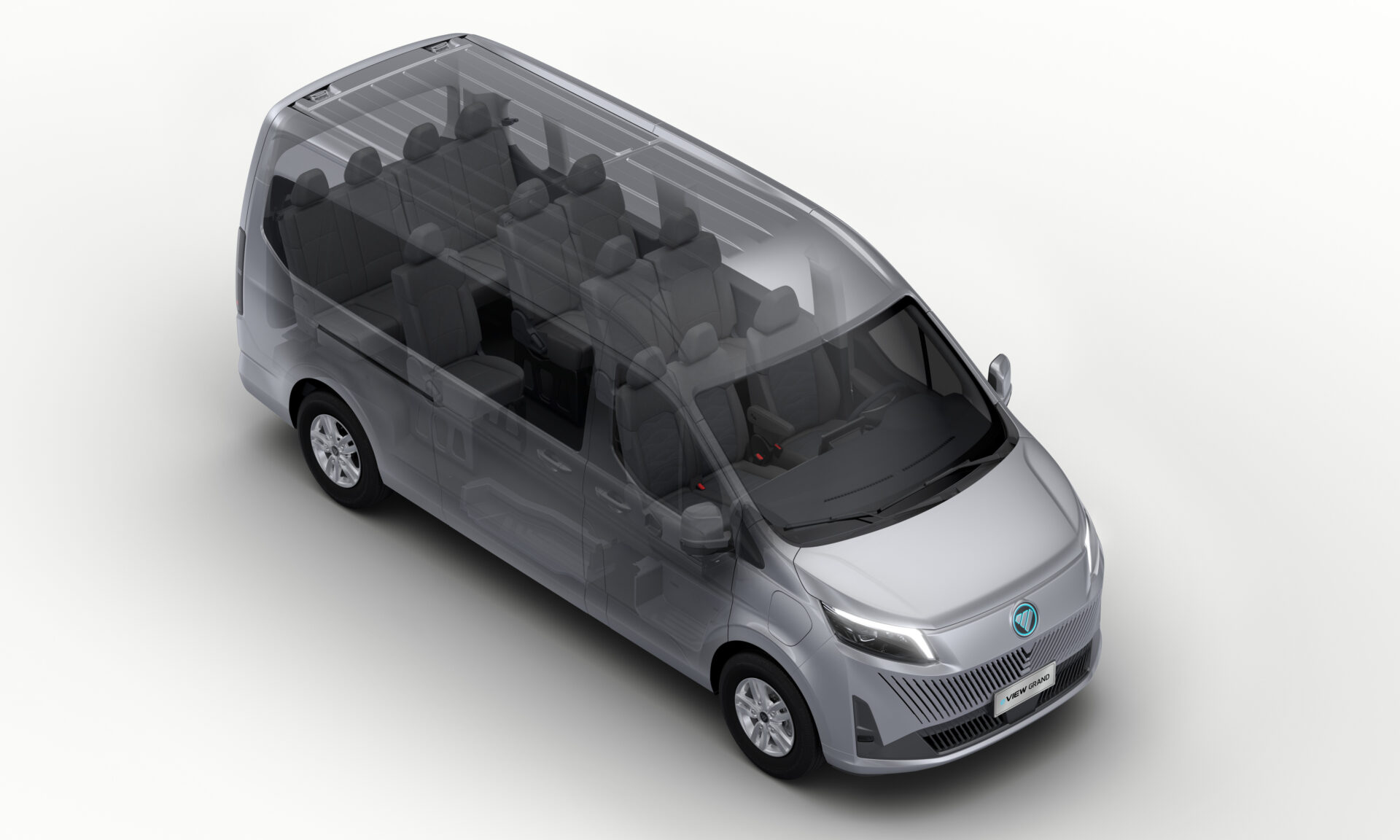

| 座位数 Number of seats |
12 |
| 燃料 Fuel |
柴油 Diesel |
| 发动机型号 Engine Model |
4F20TC34 |
| 发动机厂家 Engine manufacturer |
北汽福田 Beiqi Foton |
| 排量（cc） Displacement (cc) |
1968 |
| 排放 Emission |
欧Ⅳ Euro IV |
| 功率 Power |
120 |
| 发动机扭矩 Engine torque |
380 |
| 变速箱型号 Transmission model |
ZM6T82 |
| 变速箱厂家 Transmission manufacturer |
中马 ZM |
| 驱动桥速比 Drive axle speed ratio |
4.1 |
| 制动形式 Braking form |
前后盘式 Front and rear disc type |
| 制动控制系统 Braking control system |
ABS+EBD |
| 轮胎 Tire |
215/75R16C-116/114-11PR-S |
| 轮胎数量 Tire Number |
5 |
| 油箱容积 Fuel tank capacity |
80L |
| 悬架形式 Suspension form |
前麦弗逊独立悬架，后钢板弹簧 Front MacPherson independent suspension, rear leaf springs |
| 基础配置 Basic configuration |
前后暖风前后空调 Front and rear heating, front and rear air conditioning |
| MP3 | |
| 车身同色前后保险杆 The front and rear bumpers of the same color as the body |
|
| 无前雷达有后雷达 There is no front radar but a rear radar |
